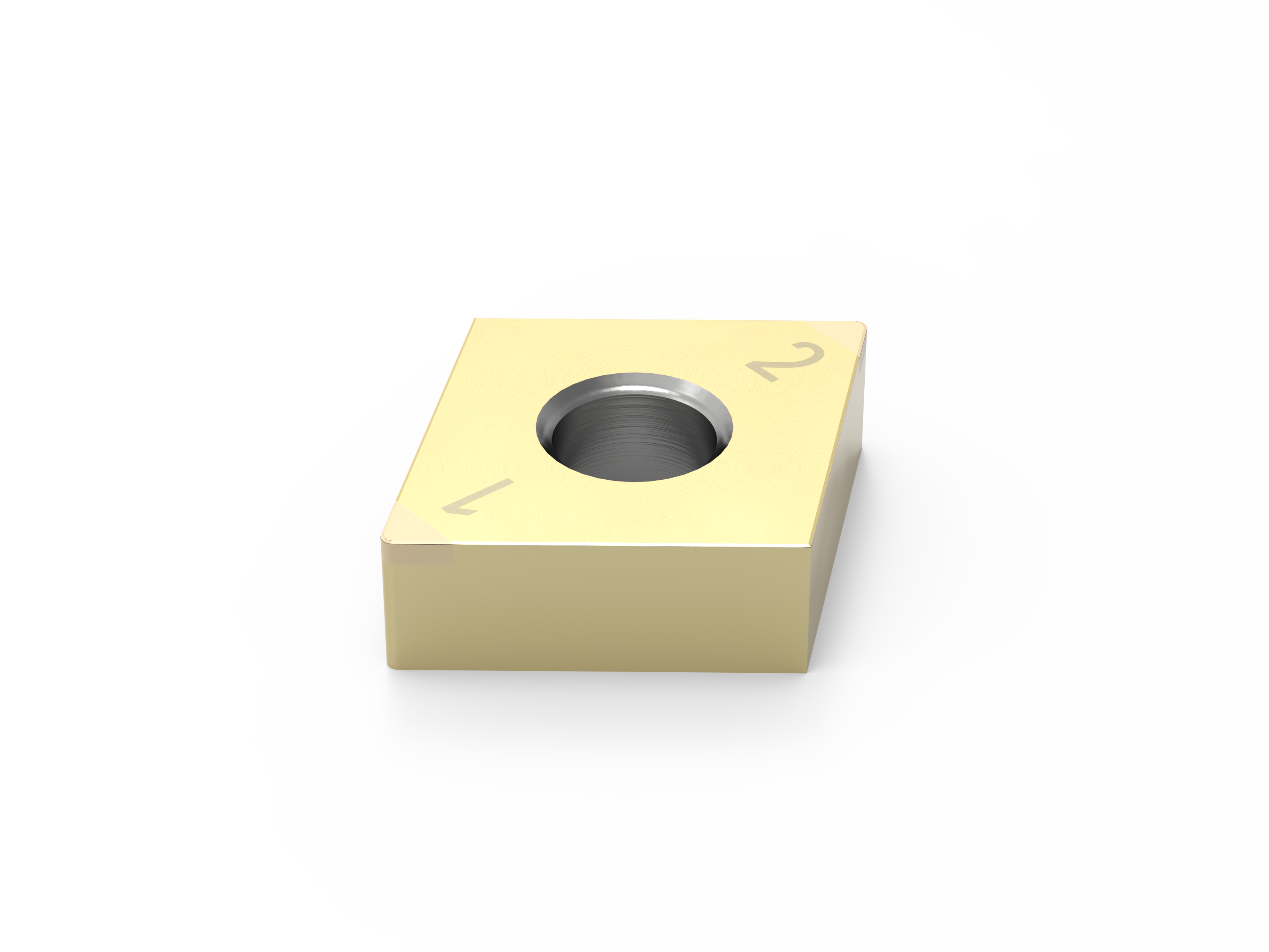

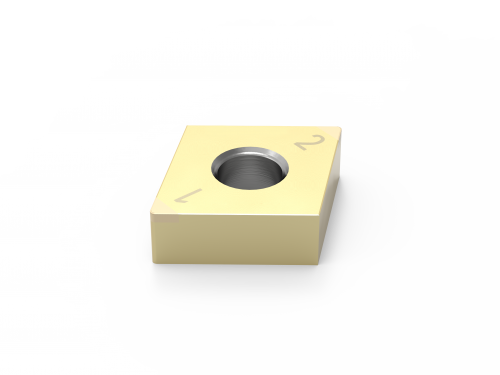

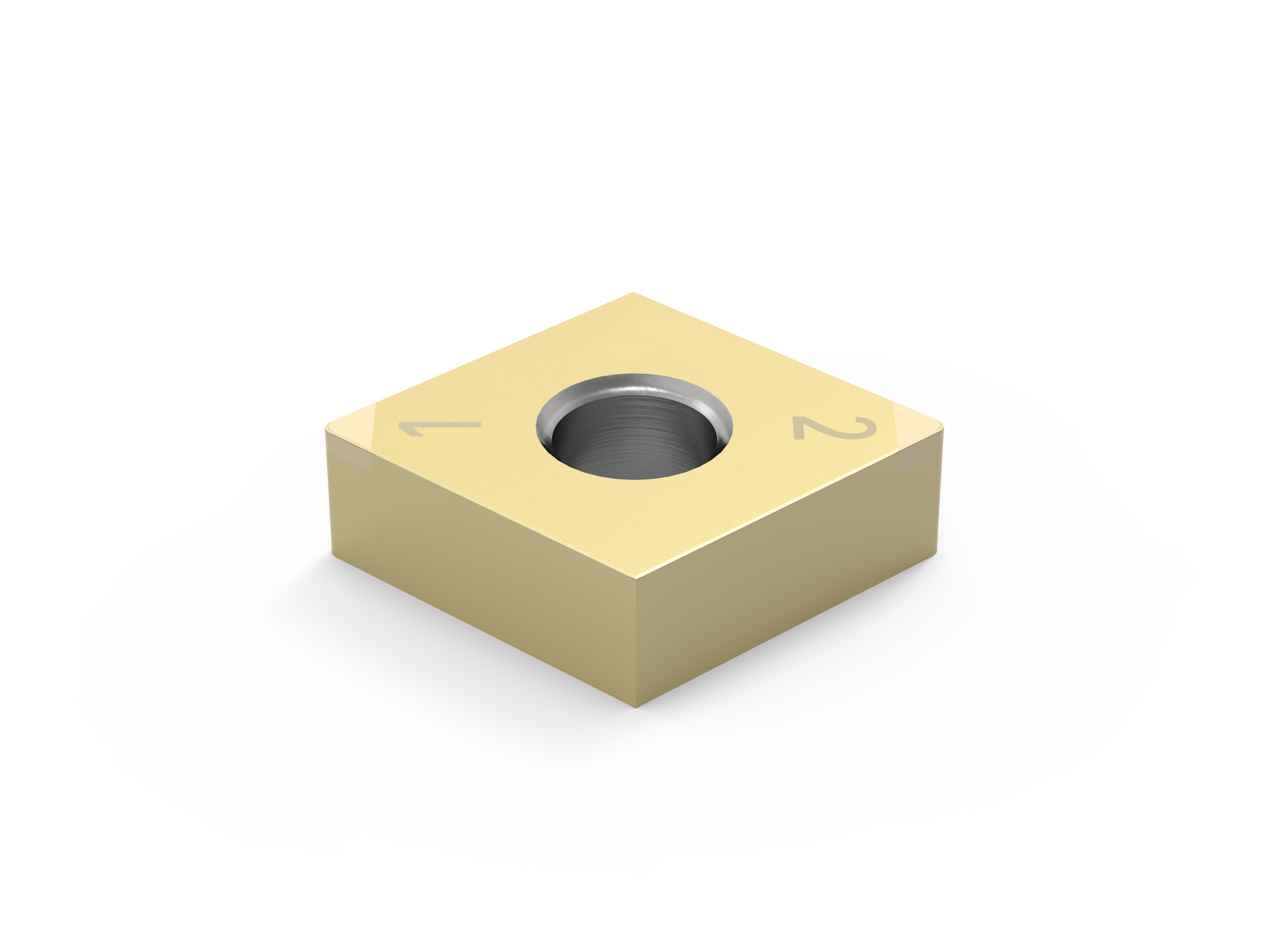

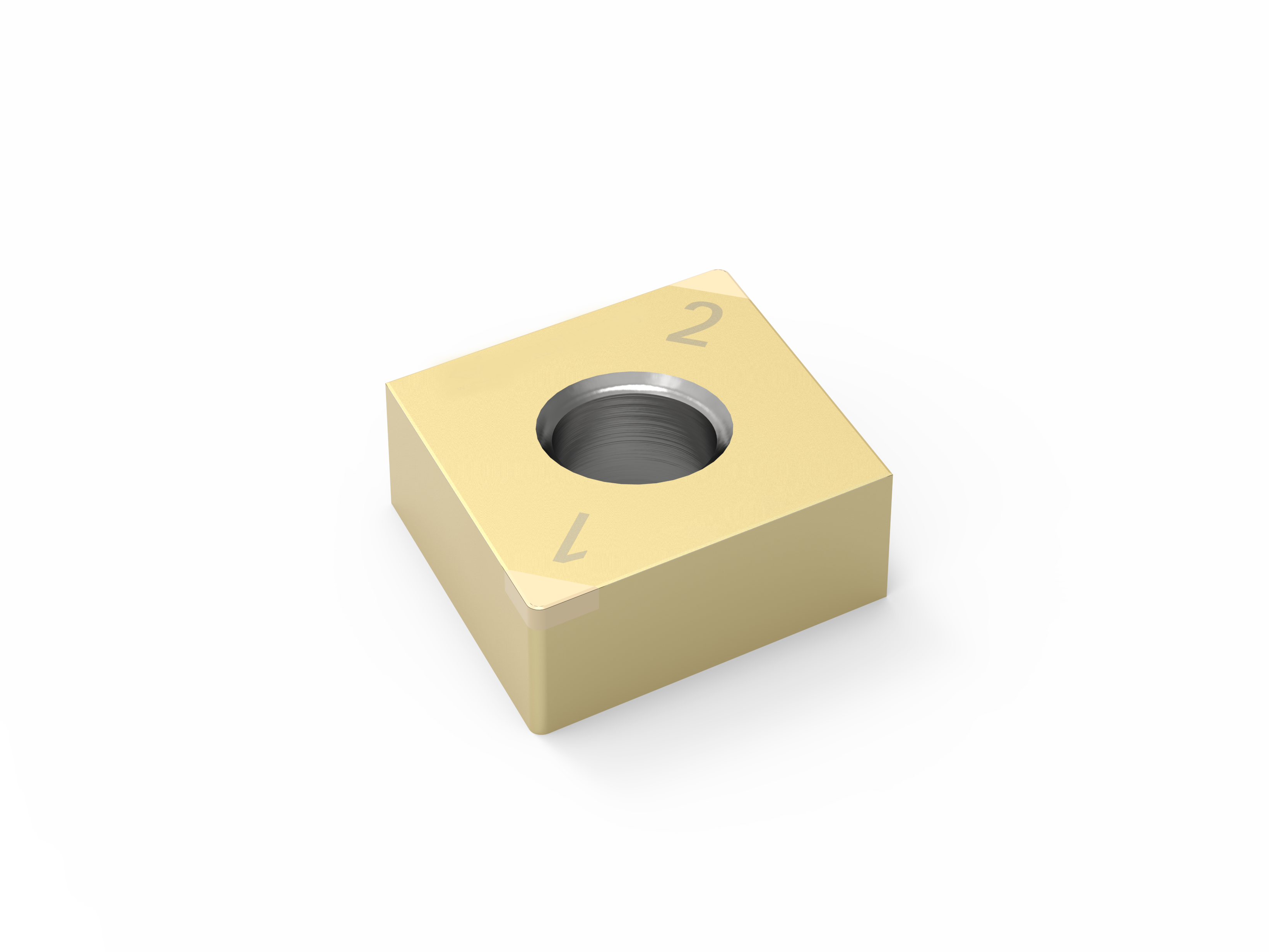

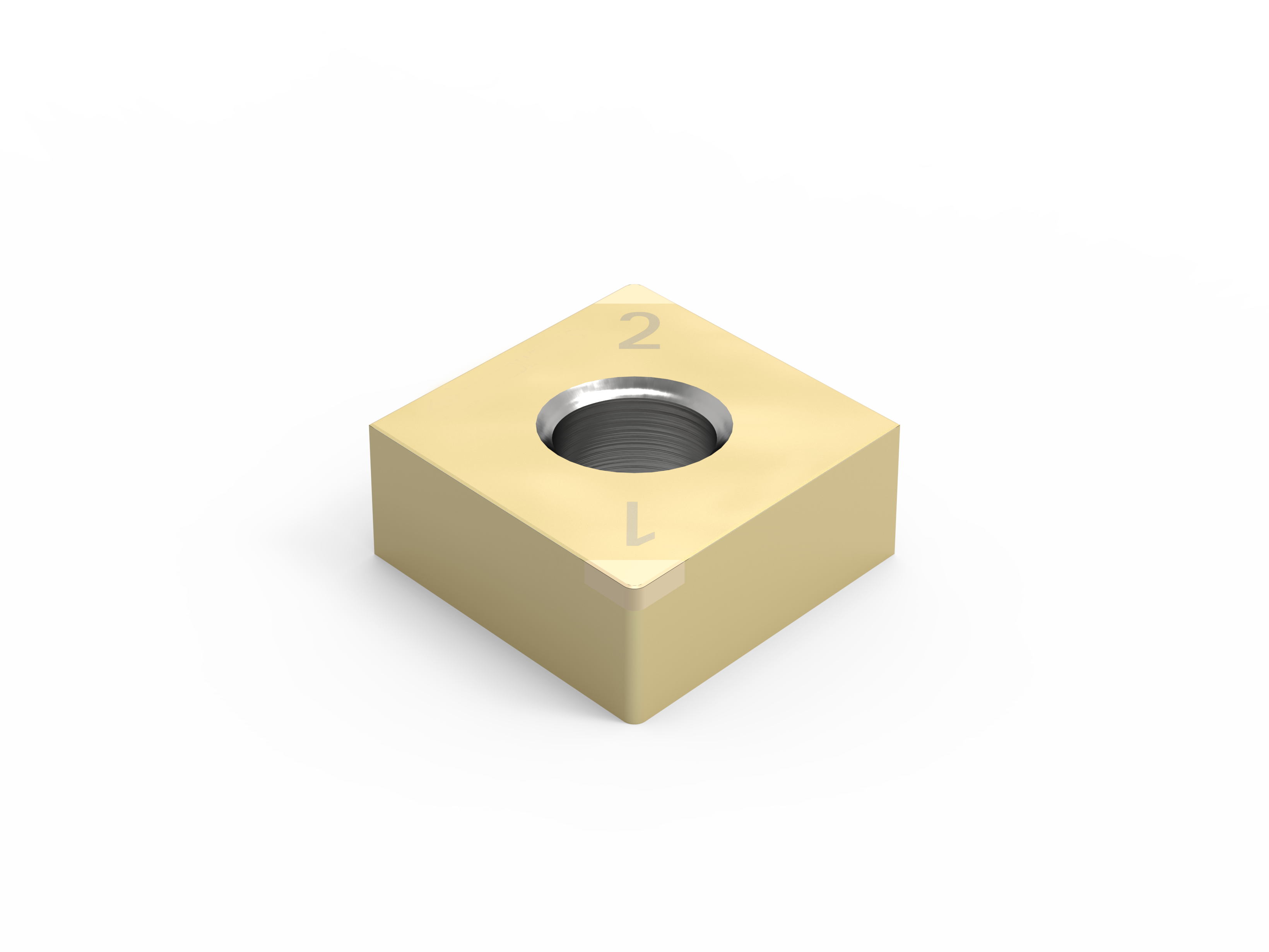

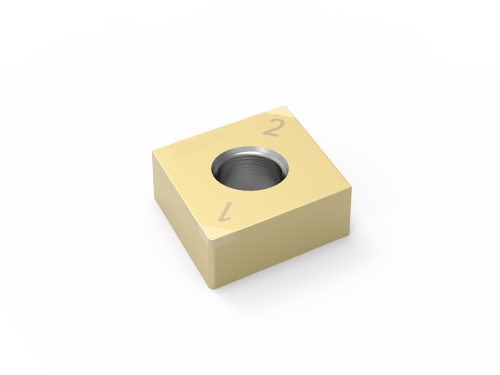

CNGA Type Coated CBN Inserts

CNGA Type Coated CBN Inserts

Model: CNGA
Brand: WORLDIA
Availability: In stock
Place of origin: Beijing, China
Online Inquiry Catalog Download PDF Format
Description Specification Application cases

Grade Introduction

Grade
Content（%）
Grain（μm）
Bond
 Figure
Features
PNH0120
45-50
0.5-2
TiC+TiCN
Widely suitable for continuous finishing
of hardened steel
PNH2018
60-65
0.5-1
TiN
Suitable for light to medium interrupted
cutting for high hardness hardened steel
with excellent edge anti-breakage
performance
PNH1024
55-60
1-4
TiN
Suitable for continuous to interrupted
cutting with high-feed and high-speed
featuring excellent toughness

CE Coating Introduction
Worldia Innovative PVD Coating



ISO H: Hardened Steel
Specification Tip Parameter Grade Application
CNGA120408-2N SLST22CE S0102510 PNH0120 Continuous
CNGA120408-2N SLWGR22CE S0102510 PNH0120 Continuous
CNGA120408-2N SLST30CE S0153510 PNH2018 Light Interrupted
CNGA120408-2N SLST30CE S0153510 PNH1024 Light Interrupted + big AP
CNGA120412-2N SLST22CE S0102510 PNH0120 Continuous
CNGA120412-2N SLWGR22CE S0102510 PNH0120 Continuous
CNGA120412-2N SLST30CE S0153510 PNH2018 Light Interrupted
CNGA120412-2N SLST30CE S0153510 PNH1024 Light Interrupted + big AP
