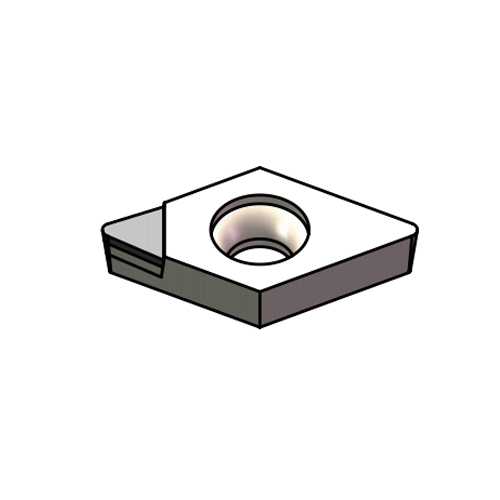

| Model: | DC TYPE |
| Brand: | WORLDIA |
| Availability: | Delivery time 15days |
| Place of origin: | Beijing,China |
| Capacity（Monthly）: | 20,000PCS |
APPLICATIONS |
| PCD tools are limited to non-ferrous materials, such as high-silicon aluminium, metal matrix composites (MMC) and carbon fibre reinforced plastics (CFRP). PCD with flood coolant can also be used in titanium super-finishing applications. |
| PRODUCT USAGE |
| According to grain size and features of diamond，four types of PCD material， i.e PD01E / PD10E / PD32E / CVDD are listed as below. |
| P | ||||
| M | ||||
| K | ||||
| N | ● | ● | ● | ● |
| S | ||||
| H | ||||
| Material | PD01E | PD10E | PD32E | CVDD |
| Grain size | 1 | 10 | 2-30 | - |
| MATERIAL INTRODUCTION |
| Material | Grain size | Features | Application |
| PD01E | 1 | PD01E fine grain size PCD material(1μm) is suitble for finishing applications.Its high impart resistance and high abrasive resistance are no less than that of rough grade of PCD. | PD01E has excellent chip resistance is suitable for the roughing and interrupt cutting aluminium alloys.This grade is also commonly used for non-ferrous finishing applications.Other successful applications include machining of wood,MDF. |
| PD10E | 10 | PD10E is the universal grade in the market.It`s the first choice for many applications where a good balance of toughness and wear resistance are required. | This Grade is commonly used for non-ferrous finishing applications.Other successful applications include machining of wood,MDF.The machining of low-medium content silicon aluminium alloys,carbide,hard rubber,graphite and so on. |
| PD32E | 2-30 | PD32E has a unique combination of wear resistance,edge strenth and edge quality.It contains a carefully sorted mix of micron diamond(Between 2 - 30 μm).The combination of these particle sizes and a specifically developed high pressure sintering process produces a structure with extreme abrasion resistance and good thermal stability. | Application areas include the machining of abrasive workpiece such as MMC,high silicon aluminium alloys as well as for the machining of carbide,hard rubber,graphite and other applications. |
| CVDD | - | CVDD is a pure carbon material without binder with extreme abrasion resistance and good thermal suitability.Due to its perfect cutting edge suitable fro appications where mirror finishes are required. | Application areas include the machining of abrasive workpiece such as MMC,high silicon aluminium alloys as well as for the machining of carbide,hard rubber,graphite and other applications. |
| SPECIFICATIONS |
| Grade | ic | φd | s | α | re | la | ||||||
| ISO catalog number | ANSI catalog number | Tip Shape | PD01E | PD10E | PD32E | CVDD | mm | mm | mm | Degree | mm | mm |
| DCGW070202-1N P00P07 | DCGW2(1.5)(0.5)-1N P00P07 | CBST25S | ● | ● | ● | 6.35 | 2.8 | 2.38 | 0° | 02 | 2.5 | |
| DCGT070202-1N P05P07 | DCGT2(1.5)(0.5)-1N P05P07 | CBST25S | ● | ● | ● | 6.35 | 2.8 | 2.38 | 5° | 02 | 2.5 | |
| DCGT070202-1N P10P07 | DCGT2(1.5)(0.5)-1N P10P07 | CBST25S | ● | ● | ● | 6.35 | 2.8 | 2.38 | 10° | 02 | 2.5 | |
| DCGW070204-1N P00P07 | DCGW2(1.5)1-1N P00P07 | CBST25S | ● | ● | ● | 6.35 | 2.8 | 2.38 | 0° | 04 | 2.5 | |
| DCGT070204-1N P05P07 | DCTW2(1.5)1-1N P05P07 | CBST25S | ● | ● | ● | 6.35 | 2.8 | 2.38 | 5° | 04 | 2.5 | |
| DCGT070204-1N P10P07 | DCTW2(1.5)1-1N P10P07 | CBST25S | ● | ● | ● | 6.35 | 2.8 | 2.38 | 10° | 04 | 2.5 | |
| DCGW070208-1N P00P07 | DCGW2(1.5)2-1N P00P07 | CBST25S | ● | ● | ● | 6.35 | 2.8 | 2.38 | 0° | 08 | 2.5 | |
| DCGT070208-1N P05P07 | DCGT2(1.5)2-1N P05P07 | CBST25S | ● | ● | ● | 6.35 | 2.8 | 2.38 | 5° | 08 | 2.5 | |
| DCGT070208-1N P10P07 | DCGT2(1.5)2-1N P10P07 | CBST25S | ● | ● | ● | 6.35 | 2.8 | 2.38 | 10° | 08 | 2.5 | |
| DCGW070202-1N P00P07 | DCGW2(1.5)(0.5)-1N P00P07 | SLST25S | ● | 6.35 | 2.8 | 2.38 | 0° | 02 | 2.5 | |||
| DCGT070202-1N P05P07 | DCGT2(1.5)(0.5)-1N P05P07 | SLST25S | ● | 6.35 | 2.8 | 2.38 | 5° | 02 | 2.5 | |||
| DCGT070202-1N P10P07 | DCGT2(1.5)(0.5)-1N P10P07 | SLST25S | ● | 6.35 | 2.8 | 2.38 | 10° | 02 | 2.5 | |||
| DCGW070204-1N P00P07 | DCGW2(1.5)1-1N P00P07 | SLST25S | ● | 6.35 | 2.8 | 2.38 | 0° | 04 | 2.5 | |||
| DCGT070204-1N P05P07 | DCGT2(1.5)1-1N P05P07 | SLST25S | ● | 6.35 | 2.8 | 2.38 | 5° | 04 | 2.5 | |||
| DCGT070204-1N P10P07 | DCGT2(1.5)1-1N P10P07 | SLST25S | ● | 6.35 | 2.8 | 2.38 | 10° | 04 | 2.5 | |||
| DCGW070208-1N P00P07 | DCGW2(1.5)2-1N P00P07 | SLST25S | ● | 6.35 | 2.8 | 2.38 | 0° | 08 | 2.5 | |||
| DCGT070208-1N P05P07 | DCGT2(1.5)2-1N P05P07 | SLST25S | ● | 6.35 | 2.8 | 2.38 | 5° | 08 | 2.5 | |||
| DCGT070208-1N P10P07 | DCGT2(1.5)2-1N P10P07 | SLST25S | ● | 6.35 | 2.8 | 2.38 | 10° | 08 | 2.5 | |||
| DCGW070202-2N P00P07 | DCGW2(1.5)(0.5)-2N P00P07 | CBST25S | ● | ● | ● | 6.35 | 2.8 | 2.38 | 0° | 02 | 2.5 | |
| DCGT070202-2N P05P07 | DCGT2(1.5)(0.5)-2N P05P07 | CBST25S | ● | ● | ● | 6.35 | 2.8 | 2.38 | 5° | 02 | 2.5 | |
| DCGT070202-2N P10P07 | DCGT2(1.5)(0.5)-2N P10P07 | CBST25S | ● | ● | ● | 6.35 | 2.8 | 2.38 | 10° | 02 | 2.5 | |
| DCGW070204-2N P00P07 | DCGW2(1.5)1-2N P00P07 | CBST25S | ● | ● | ● | 6.35 | 2.8 | 2.38 | 0° | 04 | 2.5 | |
| DCGT070204-2N P05P07 | DCGT2(1.5)1-2N P05P07 | CBST25S | ● | ● | ● | 6.35 | 2.8 | 2.38 | 5° | 04 | 2.5 | |
| DCGT070204-2N P10P07 | DCGT2(1.5)1-2N P10P07 | CBST25S | ● | ● | ● | 6.35 | 2.8 | 2.38 | 10° | 04 | 2.5 | |
| DCGW070208-2N P00P07 | DCGW2(1.5)2-2N P00P07 | CBST25S | ● | ● | ● | 6.35 | 2.8 | 2.38 | 0° | 08 | 2.5 | |
| DCGT070208-2N P05P07 | DCGT2(1.5)2-2N P05P07 | CBST25S | ● | ● | ● | 6.35 | 2.8 | 2.38 | 5° | 08 | 2.5 | |
| DCGT070208-2N P10P07 | DCGT2(1.5)2-2N P10P07 | CBST25S | ● | ● | ● | 6.35 | 2.8 | 2.38 | 10° | 08 | 2.5 | |
| DCGW11T302-1N P00P07 | DCGW3(2.5)(0.5)-1N P00P07 | CBST25S | ● | ● | ● | 9.525 | 4.4 | 3.97 | 0° | 02 | 2.5 | |
| DCGT11T302-1N P05P07 | DCGT3(2.5)(0.5)-1N P05P07 | CBST25S | ● | ● | ● | 9.525 | 4.4 | 3.97 | 5° | 02 | 2.5 | |
| DCGT11T302-1N P10P07 | DCGT3(2.5)(0.5)-1N P10P07 | CBST25S | ● | ● | ● | 9.525 | 4.4 | 3.97 | 10° | 02 | 2.5 | |
| DCGW11T304-1N P00P07 | DCGW3(2.5)1-1N P00P07 | CBST25S | ● | ● | ● | 9.525 | 4.4 | 3.97 | 0° | 04 | 2.5 | |
| DCGT11T304-1N P05P07 | DCGT3(2.5)1-1N P05P07 | CBST25S | ● | ● | ● | 9.525 | 4.4 | 3.97 | 5° | 04 | 2.5 | |
| DCGT11T304-1N P10P07 | DCGT3(2.5)1-1N P10P07 | CBST25S | ● | ● | ● | 9.525 | 4.4 | 3.97 | 10° | 04 | 2.5 | |
| DCGW11T308-1N P00P07 | DCGW3(2.5)2-1N P00P07 | CBST25S | ● | ● | ● | 9.525 | 4.4 | 3.97 | 0° | 08 | 2.5 | |
| DCGT11T308-1N P05P07 | DCGT3(2.5)2-1N P05P07 | CBST25S | ● | ● | ● | 9.525 | 4.4 | 3.97 | 5° | 08 | 2.5 | |
| DCGT11T308-1N P10P07 | DCGT3(2.5)2-1N P10P07 | CBST25S | ● | ● | ● | 9.525 | 4.4 | 3.97 | 10° | 08 | 2.5 | |
| DCGW11T302-1N P00P07 | DCGW3(2.5)(0.5)-1N P00P07 | SLST25S | ● | 9.525 | 4.4 | 3.97 | 0° | 02 | 2.5 | |||
| DCGT11T302-1N P05P07 | DCGT3(2.5)(0.5)-1N P05P07 | SLST25S | ● | 9.525 | 4.4 | 3.97 | 5° | 02 | 2.5 | |||
| DCGT11T302-1N P10P07 | DCGT3(2.5)(0.5)-1N P10P07 | SLST25S | ● | 9.525 | 4.4 | 3.97 | 10° | 02 | 2.5 | |||
| DCGW11T304-1N P00P07 | DCGW3(2.5)1-1N P00P07 | SLST25S | ● | 9.525 | 4.4 | 3.97 | 0° | 04 | 2.5 | |||
| DCGT11T304-1N P05P07 | DCGT3(2.5)1-1N P05P07 | SLST25S | ● | 9.525 | 4.4 | 3.97 | 5° | 04 | 2.5 | |||
| DCGT11T304-1N P10P07 | DCGT3(2.5)1-1N P10P07 | SLST25S | ● | 9.525 | 4.4 | 3.97 | 10° | 04 | 2.5 | |||
| DCGW11T308-1N P00P07 | DCGW3(2.5)2-1N P00P07 | SLST25S | ● | 9.525 | 4.4 | 3.97 | 0° | 08 | 2.5 | |||
| DCGT11T308-1N P05P07 | DCGT3(2.5)2-1N P05P07 | SLST25S | ● | 9.525 | 4.4 | 3.97 | 5° | 08 | 2.5 | |||
| DCGT11T308-1N P10P07 | DCGT3(2.5)2-1N P10P07 | SLST25S | ● | 9.525 | 4.4 | 3.97 | 10° | 08 | 2.5 | |||
| DCGW11T302-2N P00P07 | DCGW3(2.5)(0.5)-2N P00P07 | CBST25S | ● | ● | ● | 9.525 | 4.4 | 3.97 | 0° | 02 | 2.5 | |
| DCGT11T302-2N P05P07 | DCGT3(2.5)(0.5)-2N P05P07 | CBST25S | ● | ● | ● | 9.525 | 4.4 | 3.97 | 5° | 02 | 2.5 | |
| DCGT11T302-2N P10P07 | DCGT3(2.5)(0.5)-2N P10P07 | CBST25S | ● | ● | ● | 9.525 | 4.4 | 3.97 | 10° | 02 | 2.5 | |
| DCGW11T304-2N P00P07 | DCGW3(2.5)1-2N P00P07 | CBST25S | ● | ● | ● | 9.525 | 4.4 | 3.97 | 0° | 04 | 2.5 | |
| DCGT11T304-2N P05P07 | DCGT3(2.5)1-2N P05P07 | CBST25S | ● | ● | ● | 9.525 | 4.4 | 3.97 | 5° | 04 | 2.5 | |
| DCGT11T304-2N P10P07 | DCGT3(2.5)1-2N P10P07 | CBST25S | ● | ● | ● | 9.525 | 4.4 | 3.97 | 10° | 04 | 2.5 | |
| DCGW11T308-2N P00P07 | DCGW3(2.5)2-2N P00P07 | CBST25S | ● | ● | ● | 9.525 | 4.4 | 3.97 | 0° | 08 | 2.5 | |
| DCGT11T308-2N P05P07 | DCGT3(2.5)2-2N P05P07 | CBST25S | ● | ● | ● | 9.525 | 4.4 | 3.97 | 5° | 08 | 2.5 | |
| DCGT11T308-2N P10P07 | DCGT3(2.5)2-2N P10P07 | CBST25S | ● | ● | ● | 9.525 | 4.4 | 3.97 | 10° | 08 | 2.5 |
