Worldia - PCBN Milling Cutter

Online Inquiry PDF Format
Description CBN Milling Inserts Specifications Processing Case


APPLICATIONS
Worldia PCBN Face Milling Cutter with indexable inserts used for finishing on end milling of cast iron,it can satisfy the demand for surface roughness and geometric toklerances.

  • Hardened steel
  • Cast irons (Recommend
  • Sintered irons
  • Power Metallurgy


PRODUCT USAGE

According to grain size and features of PCBN Face milling cutter insert,We provide two  types of CBN material,
i.e PNK0119 / PNH3019 are listed as below.

P
M
K
N
S
H
Material PNK0119 PNK0119

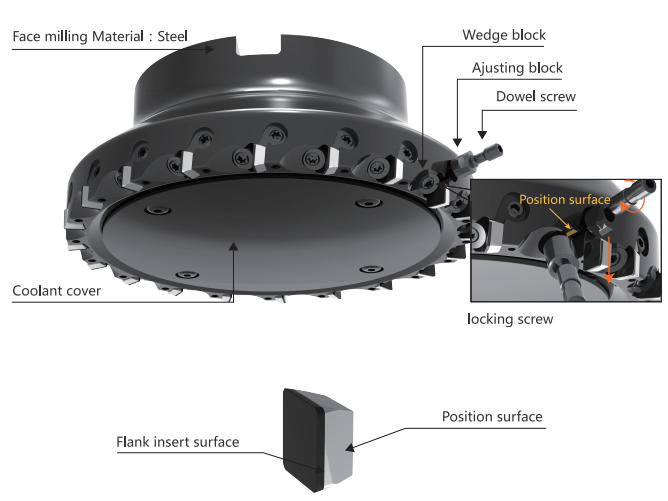

STRUCTURE OF PCBN FACE MILLING CUTTER


MATERIAL INTRODUCTION

    CBN Content Grain Size    Hardness
Workpiece Material PCBN Grades % μm Bond Hv Characteristics
K PNK0119 90~95 3 - 3700~3900 Excellent abrasive resistance
PNK3019 90~95 1 - 3700~3900 Combination of impact
resistance and abrasive resistance

CUTTING DATA RECOMMENDATION

    Cutting Speed  Feed Rate  Cutting Depth
Workpiece Material PCBN Grade  m/min mm/r mm
K PNK0119
PNK3019

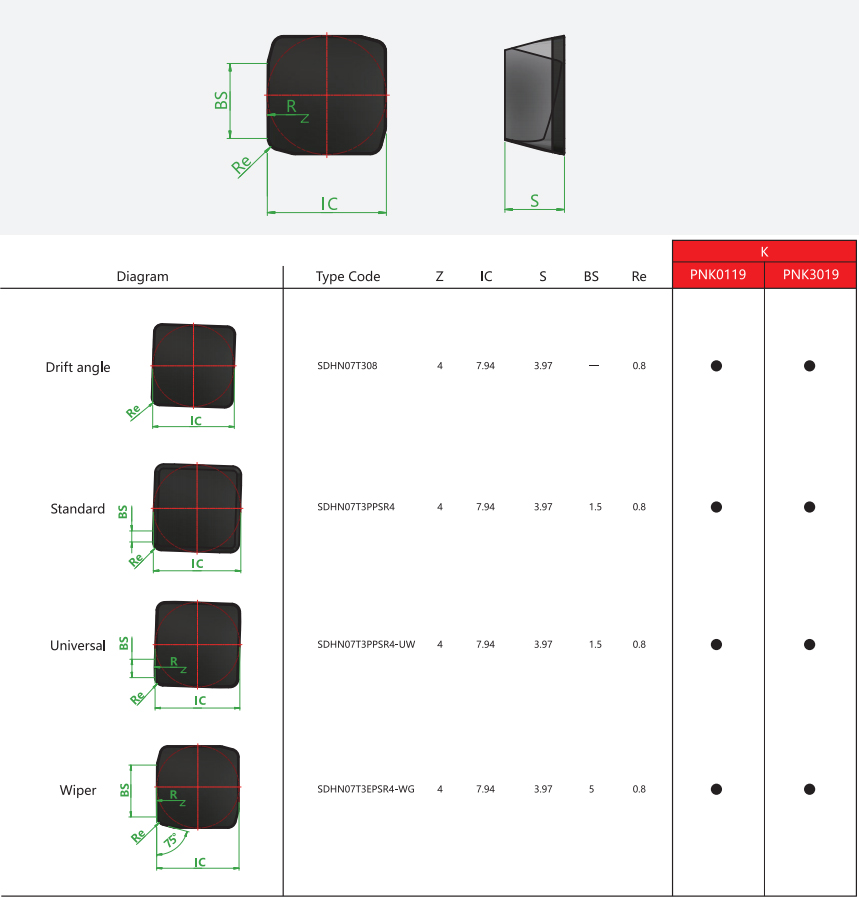

CBN MILLING INSERTS SPECIFICATIONS


Inserts are designed by variety of Kr,could meet different application of end milling and shoulder milling.






SPECIFICATIONS



    D D1 D2 D3 L L1 Teeth Weight
Specification System Code mm mm mm mm mm mm Z Kg max RPM
FMP050SA22-SD07-05 040401060023 50 22 45 - 40 7.94 5 0.40  9500
FMP063SA22-SD07-08 040401060022 63 22 45 - 40 7.94 8 0.60  7500
FMP080SA27-SD07-10 040401060021 80 27 60 - 50 7.94 10 1.20  6000
FMP100SB32-SD07-12 040401060020 100 32 80 - 50 7.94 12 1.90  4700
FMP125SB40-SD07-16 040401060019 125 40 90 - 63 7.94 16 3.20  3800
FMP160SC40-SD07-20 040401060018 160 40 110 66.7 63 7.94 20 4.50  3000
FMP200SC60-SD07-24 040401060017 200 60 150 101.6 63 7.94 24 6.80  2300
FMP250SC60-SD07-32 040401060016 250 60 200 101.6 63 7.94 32 11.60  1900
