Worldia - PCBN Mini solid Tip Turning Insert for hardened steel

Model: PCBN Mini solid tip insert
Brand: WORLDIA
Availability: production time 15 days
Place of origin: Beijing,China
Capacity(Monthly): 140,000PCS
Online Inquiry PDF Format
Description Material Introduction Specifications


APPLICATIONS

In order to create more value for customer, we designed our CBN solid tip insert with only 2.2mm cutting edge.It is the best choice for OD and boring cutting with competive price and efficiency.The mini solid tipped corners inserts can use double sides which achieves the larger cutting depth,also improves the machining efficiency with max AP 0.8mm.

  • Hardened steel
  • Cast irons
  • Sintered irons
  • Power Metallurgy

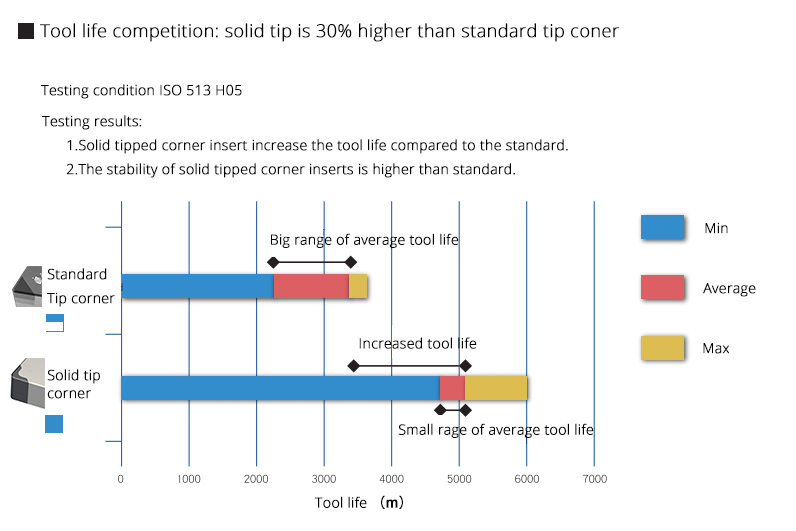

ADVANTAGE FOR SOLID TIP



PRODUCT USAGE

According to grain size and features of CBN for Hardened Steel,We provide four types of CBN material,
i.e PNH0120 / PNH1020 / PNH2018 / PNH3019 are listed as below.

P
M
K
N
S
H
Material PNH0120 PNH1020 PNH2018 PNH3019

MATERIAL APPLICATION

MATERIAL INTRODUCTION

Workpiece  PCBN  CBN Content Grain Size    Hardness
Material Grades % μm Bond Hv Characteristics Applications
H PNH0120 45~50 1 TiC 2600~2800 Good Thermal stability and crater wear resistance Used for high-speed continuous turning of hardened steel
PNH1020 60~65 1~2 TiCN 2600~2800 Combination of wear resistance and thermal stability Used for moderately interrupted and continuous turning of hardened steel
PNH2018 65~70 1< TiN 2700~2900 Combination of wear resistance and thermal stability Used for continuous or interrupted turning of hardened steel
PNH3019 85~95 1 AIN 3700~3900 High degree of toughness due to fine CBN and ceramic binder matrix Used for heavy interrupted turning of hardened steel

CUTTING DATA RECOMMENDATION

  PNH0120 PNH1020 PNH2018 PNH3019
 Vc   (m/min)

 fn    (mm/r)

 AP   (mm) Mini Tipped PCBN Inserts Mini Tipped PCBN Inserts Mini Tipped PCBN Inserts Mini Tipped PCBN Inserts

Mini Solid Tipped
                   PCBN Inserts
Mini Solid Tipped
                   PCBN Inserts
Mini Solid Tipped
                   PCBN Inserts
Mini Solid Tipped
                   PCBN Inserts


  Heavy cutting PCBN Inserts Heavy cutting PCBN Inserts Heavy cutting PCBN Inserts




SPECIFICATIONS
