| Model: | PCBN wiper insert |
| Brand: | WORLDIA |
| Availability: | production time 15 days |
| Place of origin: | Beijing,China |
| Capacity（Monthly）: | 140.000PCS |
APPLICATIONS |
| Worldia PCBN wiper insert can meet the surface request for high quality,this kind of insert can improve the surface finishing of workpiece,increase machining efficiency,mini tip inserts can reduce the cost of cutting tools. |
| ADVANTAGE OF WIPER INSERT Wiper PCBN inserts could improve high quality surface and high efficiency compare with standard nose radius. |
| PRODUCT USAGE |
| According to grain size and features of CBN for Hardened Steel，We provide four types of CBN material， i.e PNH0120 / PNH1020 / PNH2018 / PNH3019 are listed as below. |
| P | ||||
| M | ||||
| K | ||||
| N | ||||
| S | ||||
| H | ● | ● | ● | ● |
| Material | PNH0120 | PNH1020 | PNH2018 | PNH3019 |
| MATERIAL APPLICATION |
|
MATERIAL INTRODUCTION
|
|||||||
| Workpiece | PCBN | CBN Content | Grain Size | Hardness | |||
| Material | Grades | % | μm | Bond | Hv | Characteristics | Applications |
| H | PNH0120 | 45~50 | 1 | TiC | 2600~2800 | Good Thermal stability and crater wear resistance | Used for high-speed continuous turning of hardened steel |
| PNH1020 | 60~65 | 1~2 | TiCN | 2600~2800 | Combination of wear resistance and thermal stability | Used for moderately interrupted and continuous turning of hardened steel | |
| PNH2018 | 65~70 | 1< | TiN | 2700~2900 | Combination of wear resistance and thermal stability | Used for continuous or interrupted turning of hardened steel | |
| PNH3019 | 85~95 | 1 | AIN | 3700~3900 | High degree of toughness due to fine CBN and ceramic binder matrix | Used for heavy interrupted turning of hardened steel | |
|
CUTTING DATA RECOMMENDATION
|
|||||||
| PNH0120 | PNH1020 | PNH2018 | PNH3019 | ||||
|
Vc (m/min)
|
 |
 |
 |
 |
|||
|
fn (mm/r)
|
 |
 |
 |
 |
|||
| AP (mm) | Mini Tipped PCBN Inserts | Mini Tipped PCBN Inserts | Mini Tipped PCBN Inserts | Mini Tipped PCBN Inserts | |||
 |
 |
 |
 |
||||
| Mini Solid Tipped PCBN Inserts |
Mini Solid Tipped PCBN Inserts |
Mini Solid Tipped PCBN Inserts |
Mini Solid Tipped PCBN Inserts |
||||
 |
 |
 |
 |
||||
| Heavy cutting PCBN Inserts | Heavy cutting PCBN Inserts | Heavy cutting PCBN Inserts | |||||
 |
 |
 |
|||||

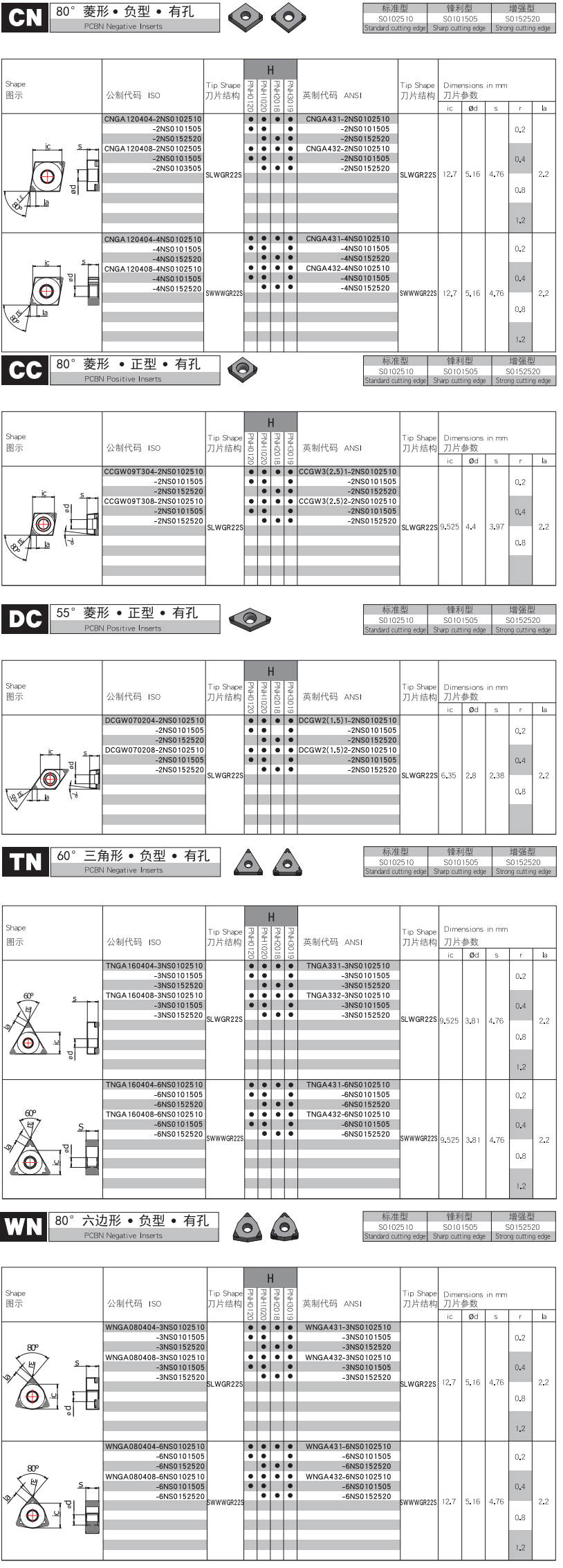

| SPECIFICATIONS We select part of information,for details spec for PCBN wiper insert please check and download the catalog. |
